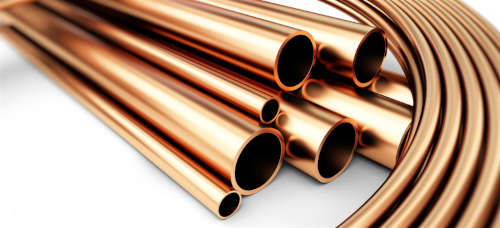

Copper Pipe, Tubing & Fittings
Copper Pipe, Tubing & Fittings
Howell provides a wide selection of copper pipe, tubing and fittings marked with all necessary listings and certifications. With natural corrosion resistance and ease of machinability copper has been used for centuries. Copper is lightweight and is an excellent conductor for heat transfer. Both rigid pipe lengths and flexible tubing coils are available from Howell. The strength and hardness of copper pipe and tube is also referred to as “Temper”. Drawn temper is stated as “hard” and annealed as “soft”. These are available in a variety of diameters and wall thicknesses. Copper fittings are available in Wrot, Cast, ACR, and DWV fittings.
Options include cleaned and bagged wrot copper fittings and medical service valves for oxygen service (medical gas). NFPA 99 Health Care Facilities Gas and Vacuum Systems and the Compressed Gas Association, Pamphlet G4.1 (medical gas).
Options include cleaned and bagged wrot copper fittings and medical service valves for oxygen service (medical gas). NFPA 99 Health Care Facilities Gas and Vacuum Systems and the Compressed Gas Association, Pamphlet G4.1 (medical gas).
Pipe & Tube Types
| Tube Type | Colour Code | Common Applications |
|---|---|---|
| Type K, heavy wall | Green | Domestic water service, Underground service lines, Fire protection, Fuel/fuel oil, Liquefied petroleum (LP) gas, Solar and Snow melting |
| Type L, medium wall | Blue | Domestic water service, Fire protection, Fuel/fuel oil, Liquefied petroleum (LP) gas, Solar and Snow melting |
| Type M, light wall | Red | Domestic water service, Solar, Residential and applications with low pressure requirements |
| DWV, thinnest wall | Yellow | Drain, Waste and Vent, non pressure applications |
| ACR | Air conditioning and Refrigeration | |
| G/GAS | Natural gas and Liquefied petroleum (LP) gas | |
| MED | K - Green L - Blue | Medical gas and Compressed Medical Air |
Product Material and Specifications:
Pipe
- Alloy C12200
Fittings
- ASTM B75 Alloy C12200: Seamless Copper Tube
- ASTM B584 Alloy C84400: Copper Alloy Sand Castings
- ASTM B152 Alloy C11000: Copper Sheet, Strip, Plate and Rolled Bar
Specifications
- NSF/ANSI 61: Drinking Water System Components
- ASTM B88: Seamless Copper Water Tube - Type K, L, M
- ASTM B306: Copper Drainage Tube - DWV
- ASTM B280: Seamless Copper Tube for Air Conditioning and Refrigeration Field Service - ACR
- ASTM B837: Seamless Copper Tube for Natural Gas and Liquefied Petroleum (LP) Gas Fuel Distribution Systems - Type G/Gas
- ASTM B819: Seamless Copper Tube for Medical Gas Systems
- ASME/ANSI B16.22: Wrought Copper and Copper Alloy Solder Joint Pressure Fittings
- ASME/ANSI B16.18: Cast Copper Alloy Solder Joint Pressure Fittings
- ASME/ANSI B16.29: Wrought Copper and Copper Alloy Solder Drainage Fittings - DWV
- ASME/ANSI B16.23: Cast Copper Alloy Solder Joint Drainage Fittings – DWV
- ASME/ANSI B16.24: Bronze Pipe Flanges and Flanged Fittings
- ASME/ANSI B16.15: Cast Bronze Threaded Fittings
- ASME/ANSI B16.26: Cast Copper Alloy Fittings for Flared Copper Tube
- MSS SP-104: Wrought Copper Solder Joint Pressure Fittings
- MSS SP-106: Cast Copper Alloy Flanges and Flanged Fittings
- MSS SP-109: Welded Fabricated Copper Solder Joint Pressure Fittings
- MSS SP-123: Non-Ferrous Threaded and Solder Joint Unions
Did You Know...
Copper water pipes were discovered in the palace ruins of the Indus River Valley of India, dating all the way back to 4000-3000 B.C. It was also found that in 2500 B.C. the Egyptians used copper water pipes for elaborate bathrooms inside the pyramids
Howell Copper Pipe & Tube Dimensions
